A2d products Hard Wired straight to connector Series 9 Point Source Microphones

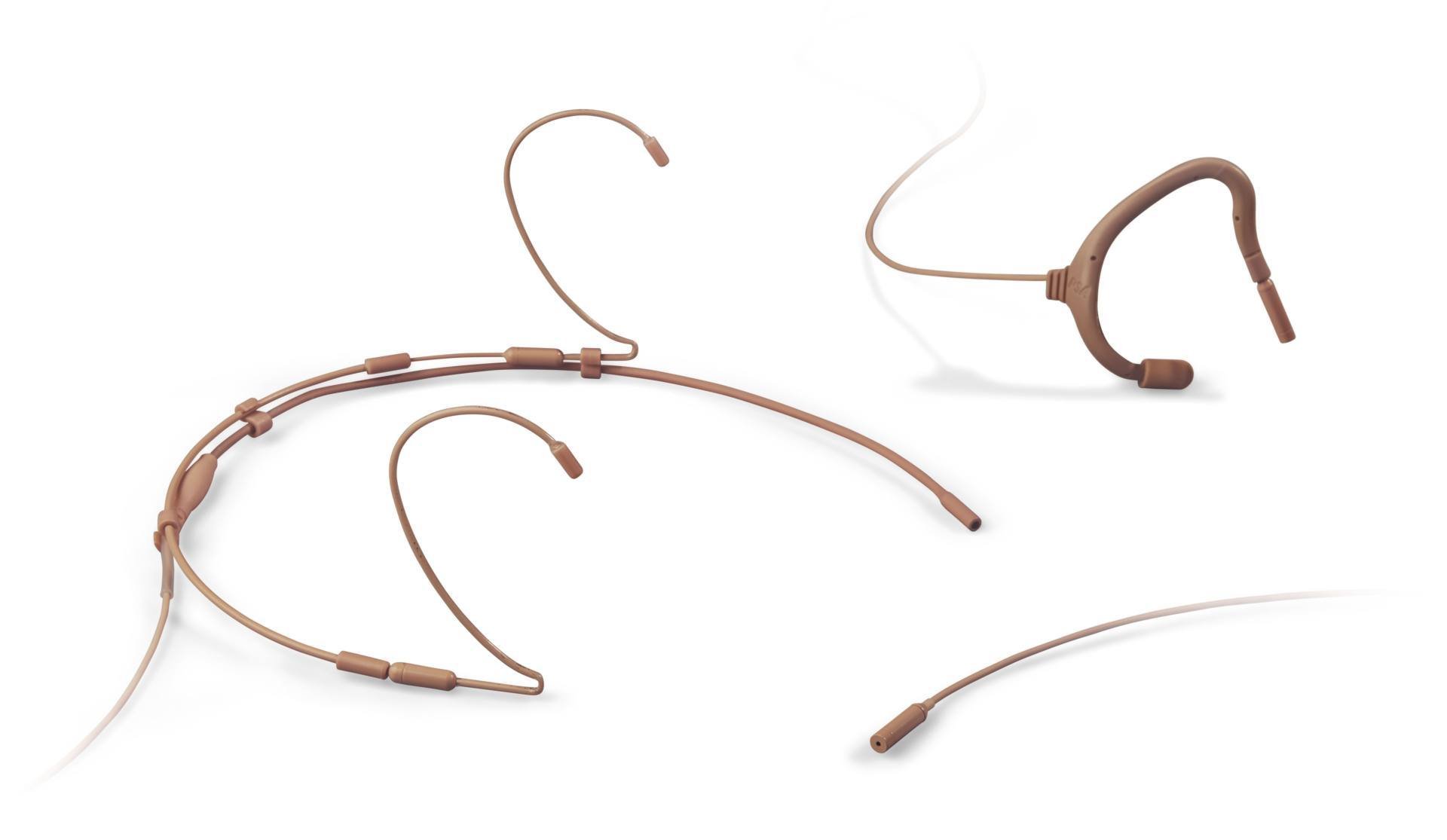

ENDURE-with-SERIES9-subminiature-microphones.jpg Image 1 of 2

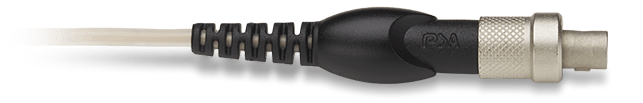

Connect01.png Image 2 of 2

Hard Wired straight to connector Series 9 Point Source Microphones

from $449.00

Meet the first-of-its-kind subminiature microphones that deliver high max sound pressure levels (SPL), high sensitivity and high durability—all in one package! This is hard wired direct to the connector, no X connector adaptor!

Style:
Connector:
Color:
Quantity:
Add To Cart

Meet the first-of-its-kind subminiature microphones that deliver high max sound pressure levels (SPL), high sensitivity and high durability—all in one package! This is hard wired direct to the connector, no X connector adaptor!

Meet the first-of-its-kind subminiature microphones that deliver high max sound pressure levels (SPL), high sensitivity and high durability—all in one package! This is hard wired direct to the connector, no X connector adaptor!


Specifications

Element(s): Back Electret Condenser
Pattern: Omnidirectional
Waterproof rating:  IP 57
Frequency: 20Hz - 20kHz
Sensitivity: -39 dB 1V/Pa (at 1kHz)
Maximum SPL: 142 dB SPL
Output Impedance: 1,300 Ω ± 30% (at 1kHz)
Operating Voltage: 1 - 10 V
Cable Length: 1.7 m + connector
Net Weight: 0.6 oz
Colors: Beige, Brown or Black
Connector Types: Fixed ENDURE connectors: 3-pin Lemo-style, TA4F or 3.5mm locking ring
